Product
Applications
• Irrigation in greenhouses, gardens, orchards and vegetable.
• Cooling temperature of livestock over the roof etc
• Cooling temperature of livestock over the roof etc
Features
• Mechanical assembly
• Broad range of wetted diameter and flow rates
• Small, medium or large droplets
• Recommended working pressure : 1.5-2.2 bar
• Flow rate : 35-200 ℓ/hr
• Wetted diameter : 4~10M
• Filtering requirement : 130 micron Mesh No. 120 ASTM E 11

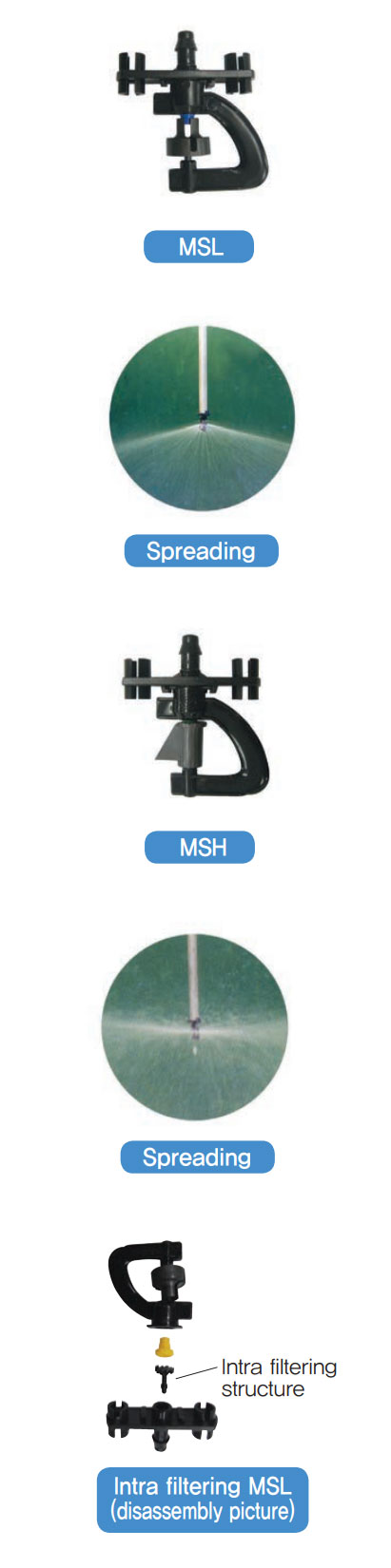

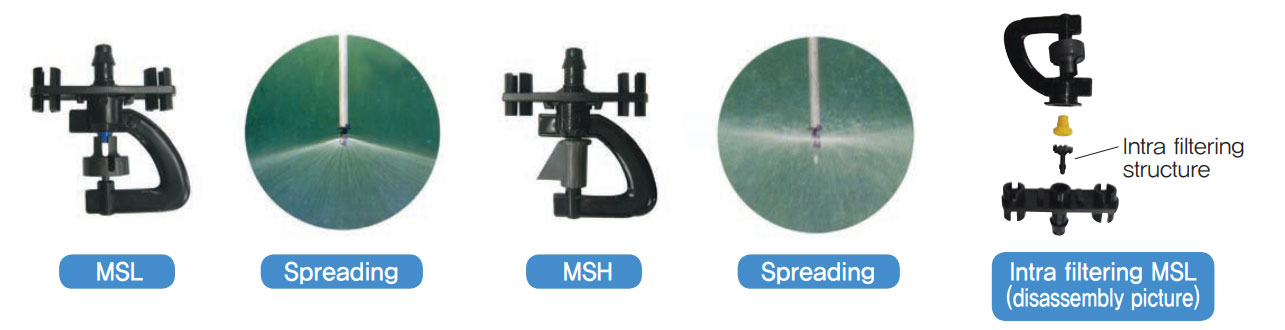

• Two size intra-filtering structures such as 0.5 and 0.9 mm
• Broad range of wetted diameter and flow rates
• Small, medium or large droplets
• Recommended working pressure : 1.5-2.2 bar
• Flow rate : 35-200 ℓ/hr
• Wetted diameter : 4~10M
• Filtering requirement : 130 micron Mesh No. 120 ASTM E 11
• Two size intra-filtering structures such as 0.5 and 0.9 mm
Table 1. Technical data of micro-sprinkler according to models
| Division | Watering radius of MSL(M) | Watering radius of MSH(M) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Nozzle (ℓ/hr) at 2bar |
Colors | Upside-up installation height |
Upside-down installation height |
Upside-up installation height |
Upside-down installation height |
||||
| 1M | 1M | 1.5M | 2M | 1M | 1M | 1.5M | 2M | ||
| 35 | red | 2.8 | 2.2 | 2.3 | 2.6 | 2.4 | 2.5 | 2.6 | 2.8 |
| 70 | orange | 3.2 | 2.3 | 2.5 | 2.9 | 2.7 | 3.2 | 3.3 | 3.7 |
| 100 | yellow | 3.4 | 2.5 | 2.7 | 3.1 | 3.1 | 3.6 | 3.9 | 4.5 |
| 120 | green | 3.6 | 2.7 | 3.0 | 3.5 | 3.3 | 3.7 | 4.2 | 4.7 |
| 140 | blue | 3.7 | 2.9 | 3.2 | 3.6 | 3.4 | 3.9 | 4.5 | 5.0 |
| 200 | white | 4.2 | 3.0 | 3.3 | 3.7 | 3.6 | 3.9 | 4.5 | 5.0 |
